hydraulic leveling system
Tongte Technology

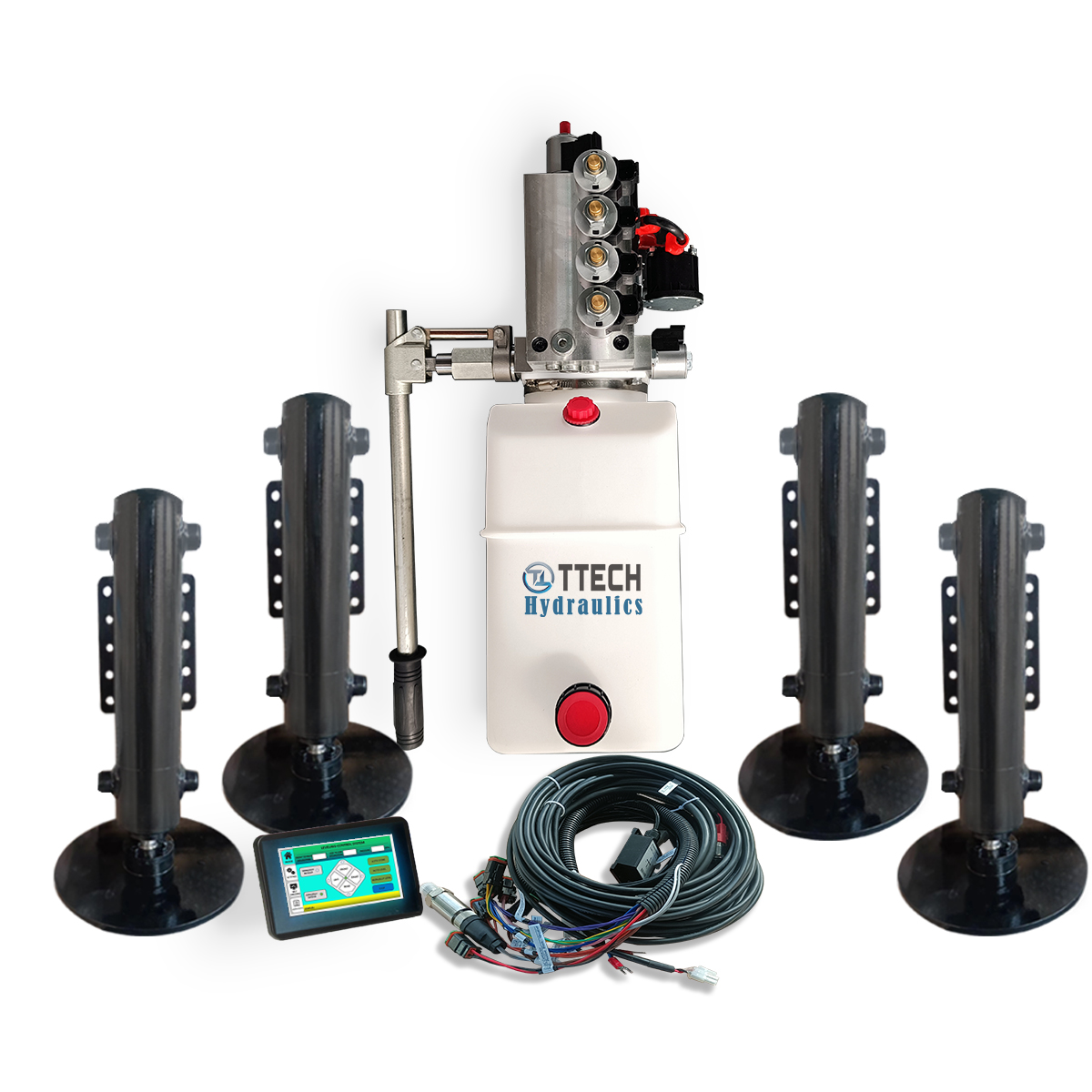

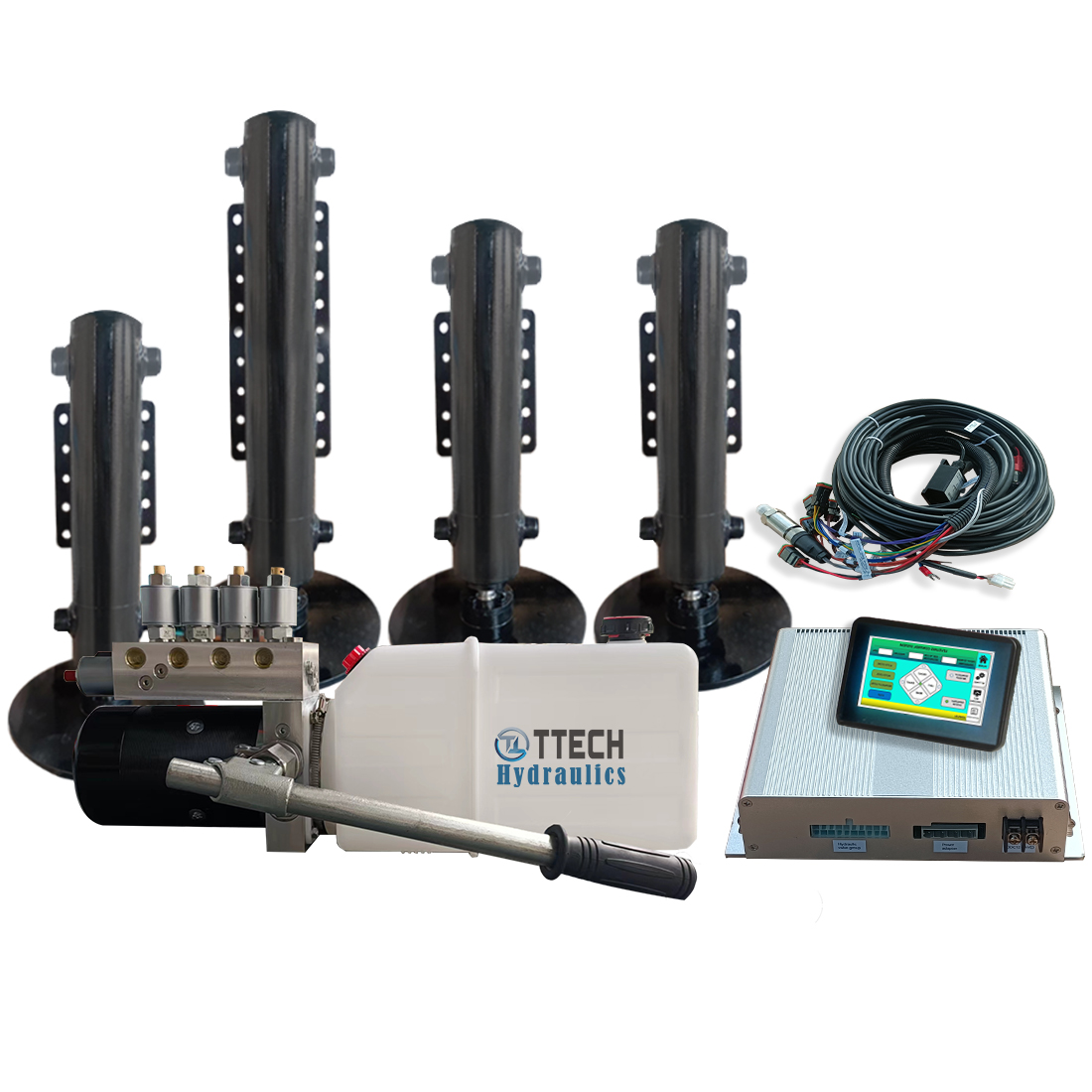

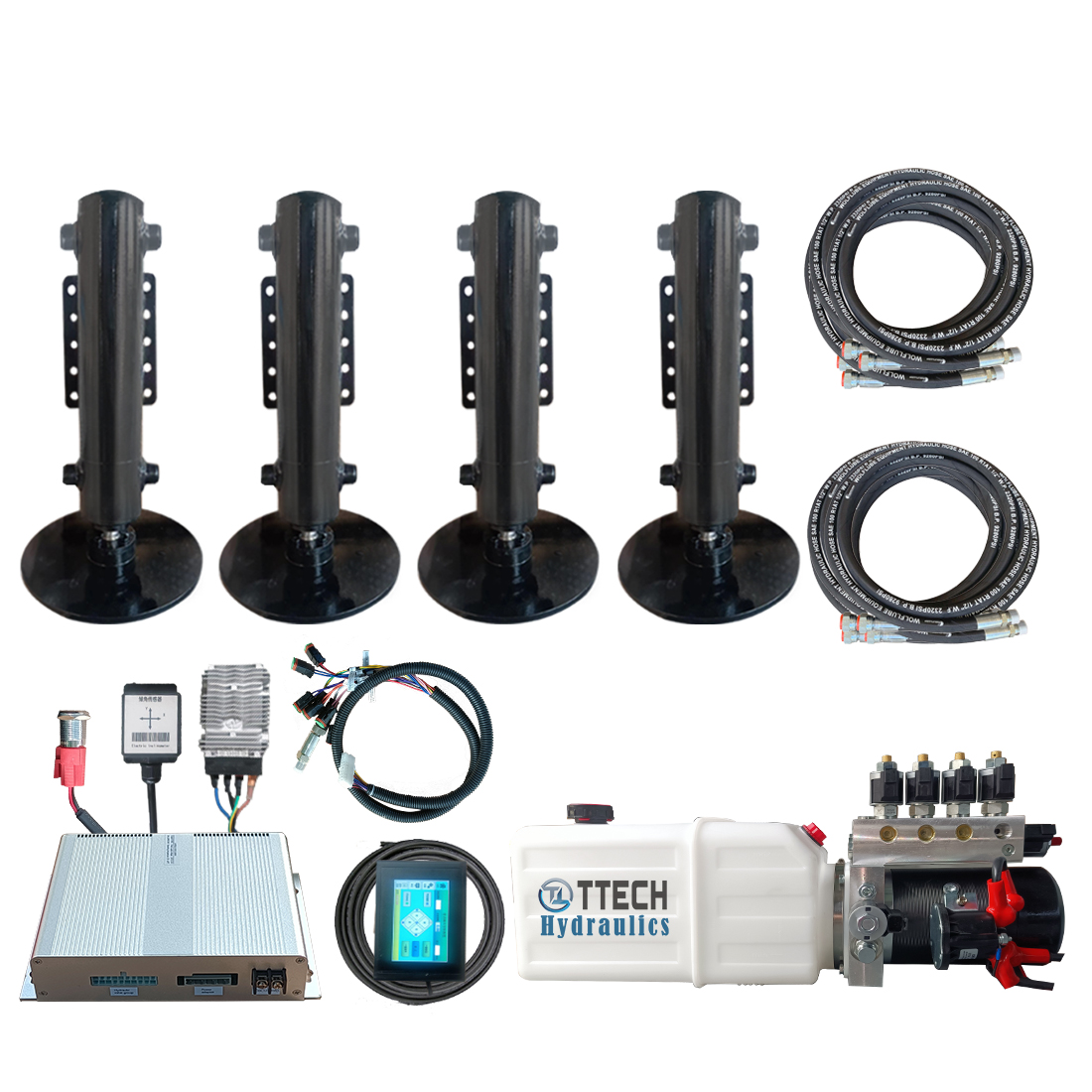

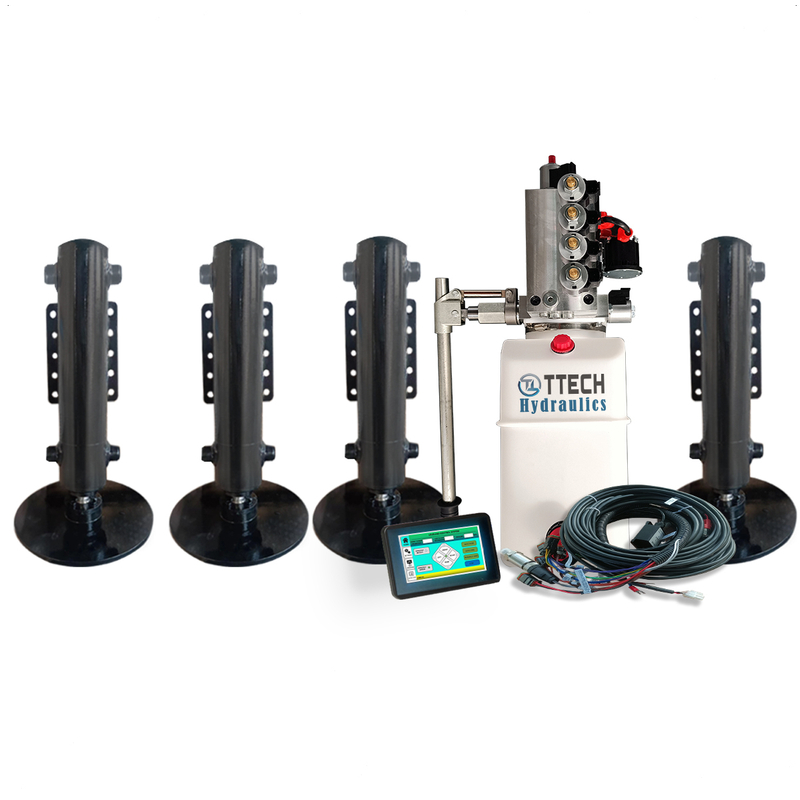

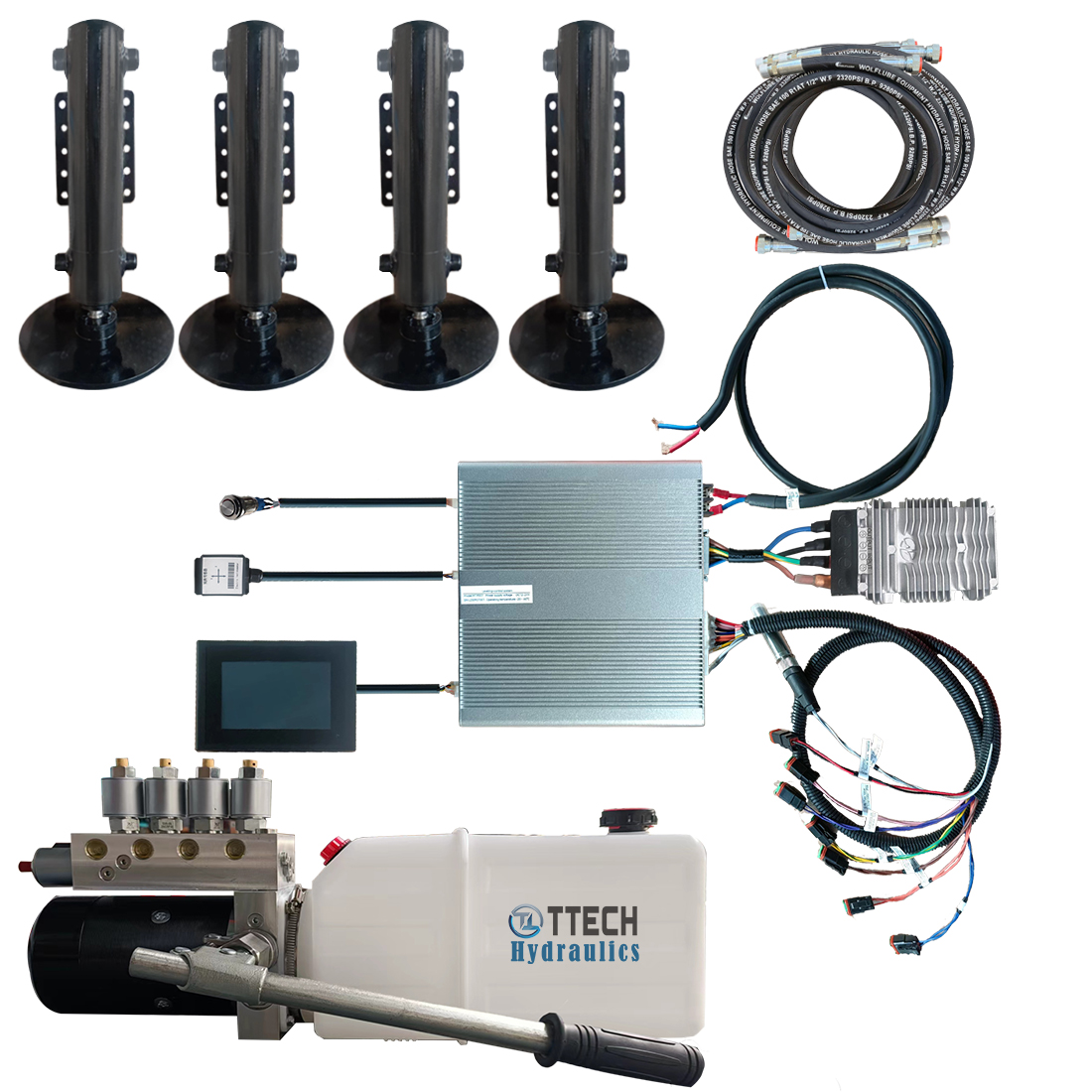

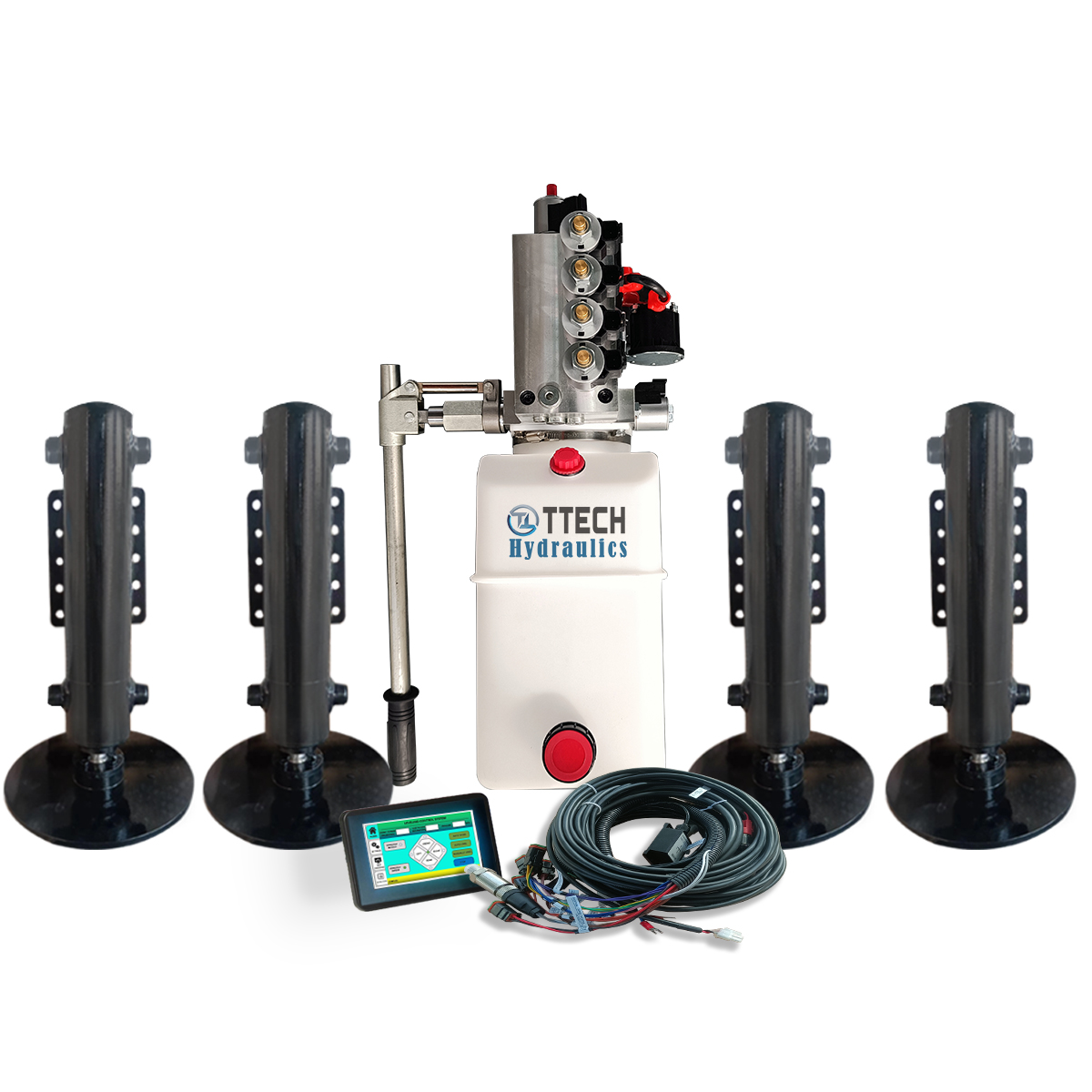

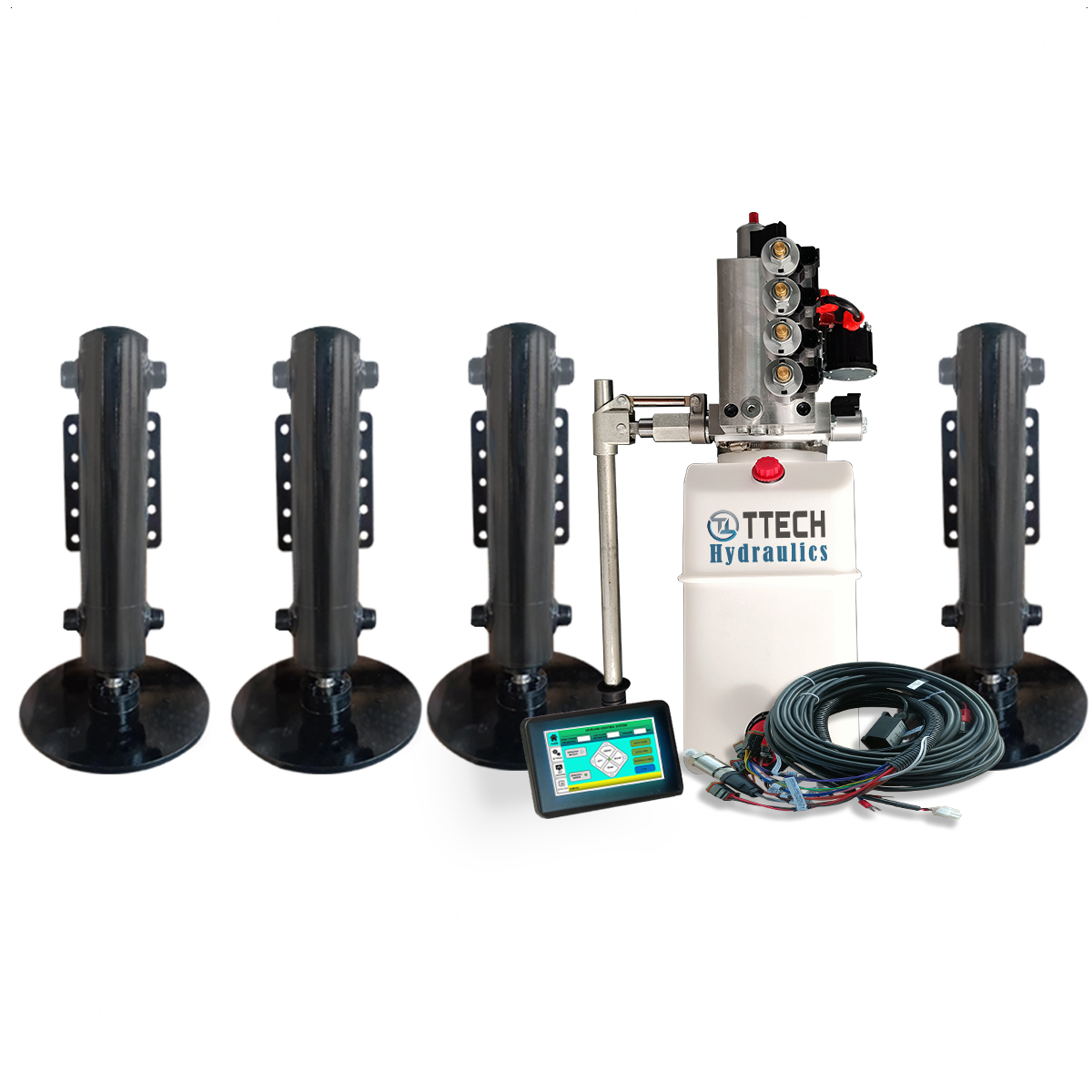

HLS-001 Hydraulic Leveling System
We have been commit to developing and producing hydraulic leveling systems for mobile applications for 10 years ,which means we have extensive experience.

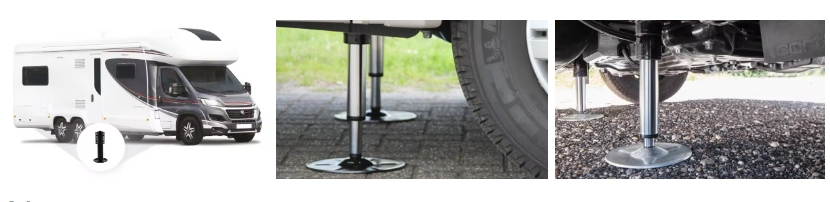

Camper and caravan owners know that comfort counts. That is why we likes to take it a step further. Or rather: a level higher. Our leveling systems ensure a simple and quick stabilization of, among other things, campers and caravans. Level in one push? Prefer a manual operation? In need of customization? We make it all possible.
![]() |
Advantages:
* Suitability: The system lends itself for every vehicle, regardless of the weight that has to be stabilized and possibly aligned.
* Comfort: For example, campers do not bounce all over the place, they are very steady, with all the advantages of being aligned when it comes to sleeping, cooking, showering, configuring the antenna, etc.
* The ease of operation: The system has feather-light operation from the driving seat.One push to Auto Level and Auto Retract.
* No hindrance from site conditions: (extreme situations excepted). Even if a jack is positioned above a pothole, for example, the lifting only happens when both jacks touch the ground.
* Fast: Within 90 seconds the vehicle is aligned and stabilized and within a couple of seconds you can drive away without getting out of the vehicle, which can be important in emergencies.
* Lifting: It is possible to lift every side independent of the others, which always makes it possible to align the vehicle.
* Safety:Every side is lifted with two jacks at the same time to avoid the risk that the chassis twists, which could happen if only one jack was used.
HLS-001 Hydraulic Leveling System
We have been commit to developing and producing hydraulic leveling systems for mobile applications for 10 years ,which means we have extensive experience.
Camper and caravan owners know that comfort counts. That is why we likes to take it a step further. Or rather: a level higher. Our leveling systems ensure a simple and quick stabilization of, among other things, campers and caravans. Level in one push? Prefer a manual operation? In need of customization? We make it all possible.
![]() |
Advantages:
* Suitability: The system lends itself for every vehicle, regardless of the weight that has to be stabilized and possibly aligned.
* Comfort: For example, campers do not bounce all over the place, they are very steady, with all the advantages of being aligned when it comes to sleeping, cooking, showering, configuring the antenna, etc.
* The ease of operation: The system has feather-light operation from the driving seat.One push to Auto Level and Auto Retract.
* No hindrance from site conditions: (extreme situations excepted). Even if a jack is positioned above a pothole, for example, the lifting only happens when both jacks touch the ground.
* Fast: Within 90 seconds the vehicle is aligned and stabilized and within a couple of seconds you can drive away without getting out of the vehicle, which can be important in emergencies.
* Lifting: It is possible to lift every side independent of the others, which always makes it possible to align the vehicle.
* Safety:Every side is lifted with two jacks at the same time to avoid the risk that the chassis twists, which could happen if only one jack was used.
System Parameters | |||
Model | Voltage | Motor Power | Max Thrust(KN) |
1 | 12V or 24V | 1.3 | 100 |
2 | 12V or 24V | 2.2 | 280 |
3 | 24V | 2.2 | 280 |
4 | 24V | 2.2 | 280 |

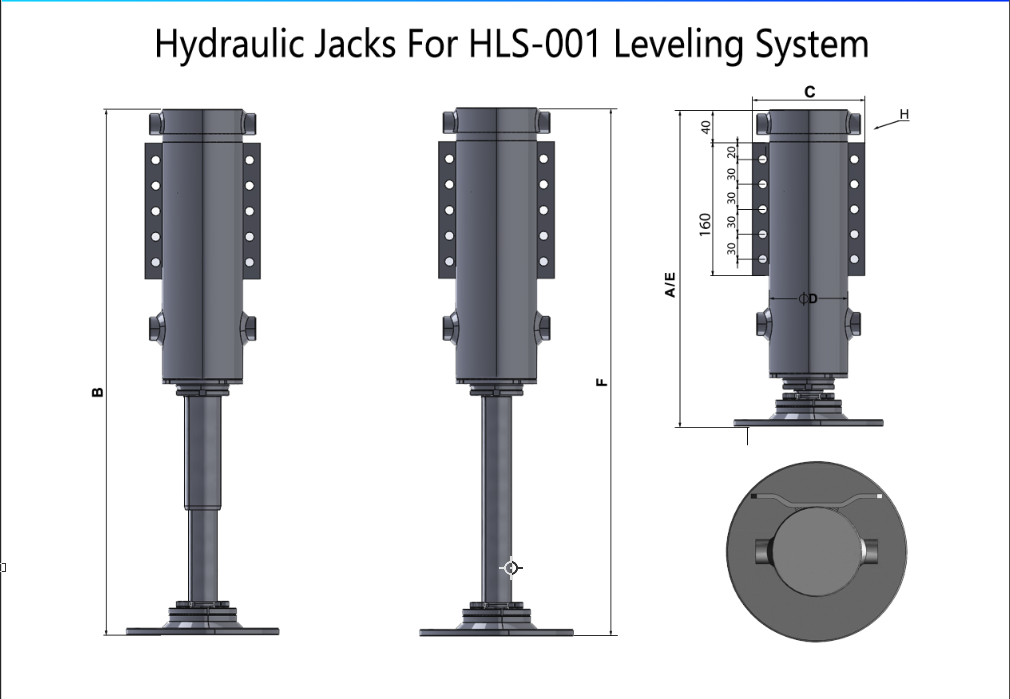

Telescopic Jack | |||||||||
Model | PRESSURE (bar) | Max Thrust (KN) | A | B | C | D | E | F | H |
1 | 180 | 30 | 381 | 689 | 110 | 95 | G3/8” | ||
2 | 180 | 30 | 416 | 794 | 110 | 95 | G3/8” | ||
Standard Jack | |||||||||
4 | 180 | 90 | 110 | 95 | 573 | 928 | G3/8” | ||
5 | 180 | 90 | 110 | 95 | 625 | 1032 | G3/8” |
