MULTI-STAGE HYDRAULIC CYLINDER

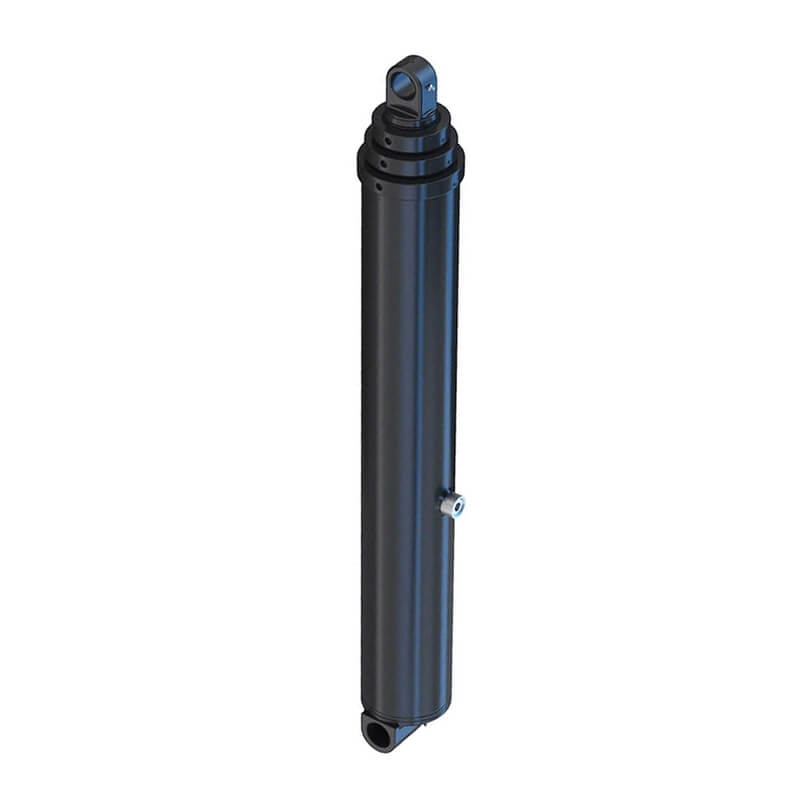

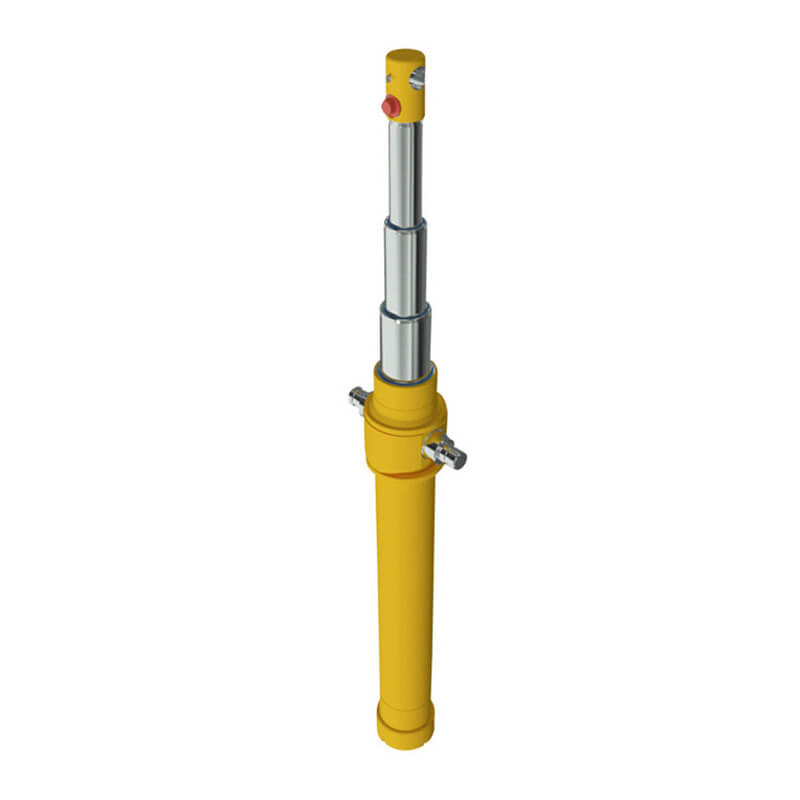

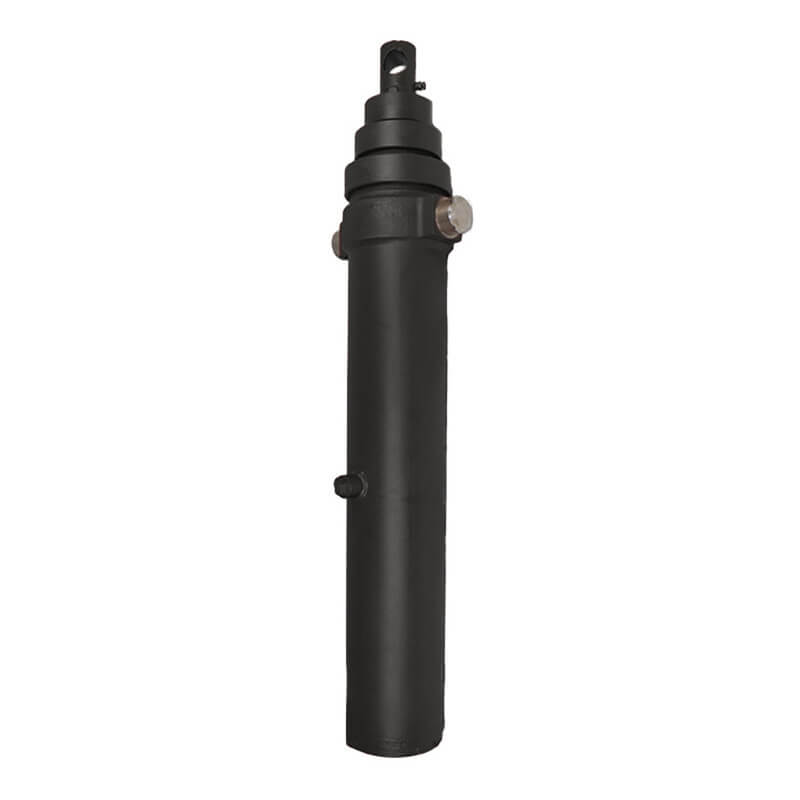

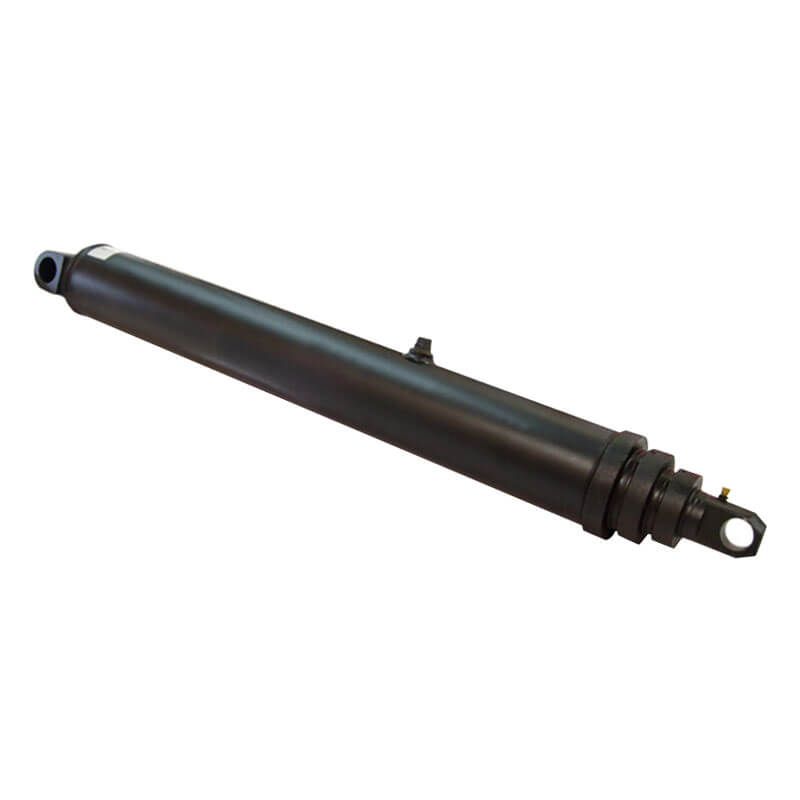

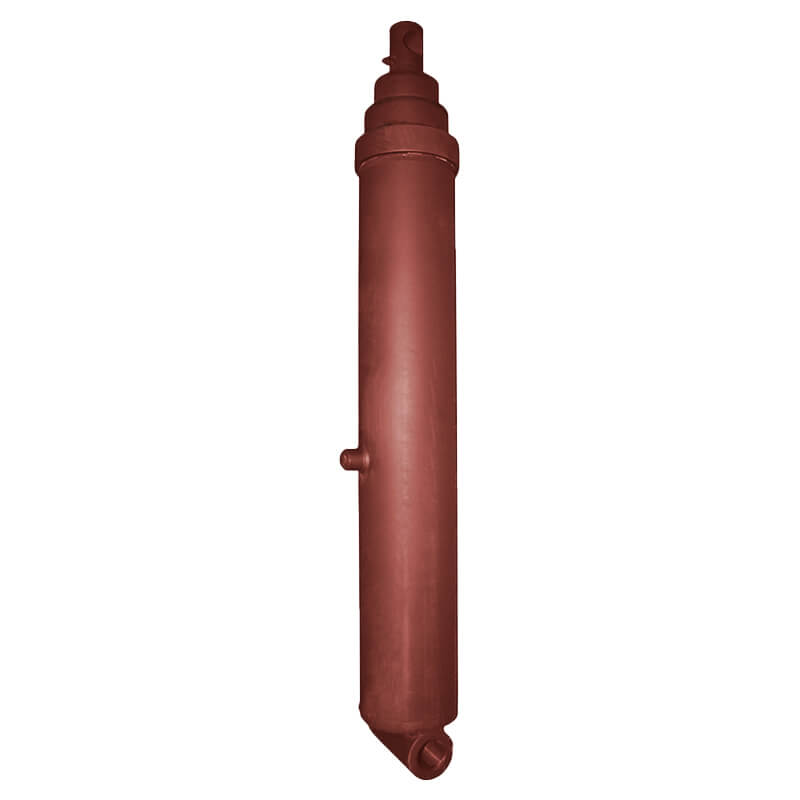

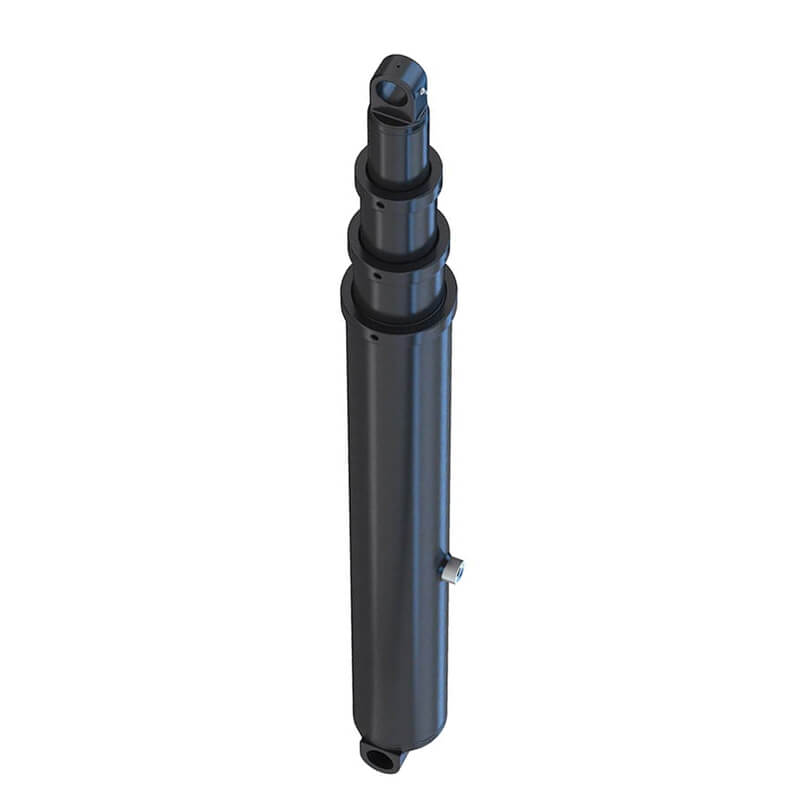

Telescopic hydraulic cylinders utilize multiple nested stages, achieving a long working stroke in compact/retracted form. We designs and engineers application-specific telescopic cylinders, purpose-built to withstand demanding applications and work environments.
Availability:
Quantity:
  • multi-stage hydraulic cylinder

  • Tongte Technology

图1


Telescopic hydraulic cylinders utilize multiple nested stages, achieving a long working stroke in compact/retracted form. We designs and engineers application-specific telescopic cylinders, purpose-built to withstand demanding applications and work environments.

An experienced engineering team helps you work through design considerations to ensure your cylinder meets your requirements.


Product Name

SGS Series Hydraulic Cylinder

Work Press

7/14/16/21/31.5MPa

Material

Aluminum, Cast Iron,45mnb Steel, Stainless Steel

Stage

Up to 5 Stage

Bore Size

40mm--320mm, Customizable

Shaft Diameter

20mm--220mm, Customizable

Stroke Length

30mm--14100mm, Customizable

Rod Surface Hardness

HRC48-54

Operating Temperature

-40°C to +120 °C

Paint Color

Black, Yellow, Blue, Brown, Customizable

Service

OEM&ODM

Warranty

1 Year

MOQ

1 Piece

Delivery Time

7-15 Days, Also depending on specific demands

Certification

ISO9001,CE

Capacity

50,000Pcs per year


图3 (1)

图4 (1)
