ROTARY HYDRAULIC CYLINDER

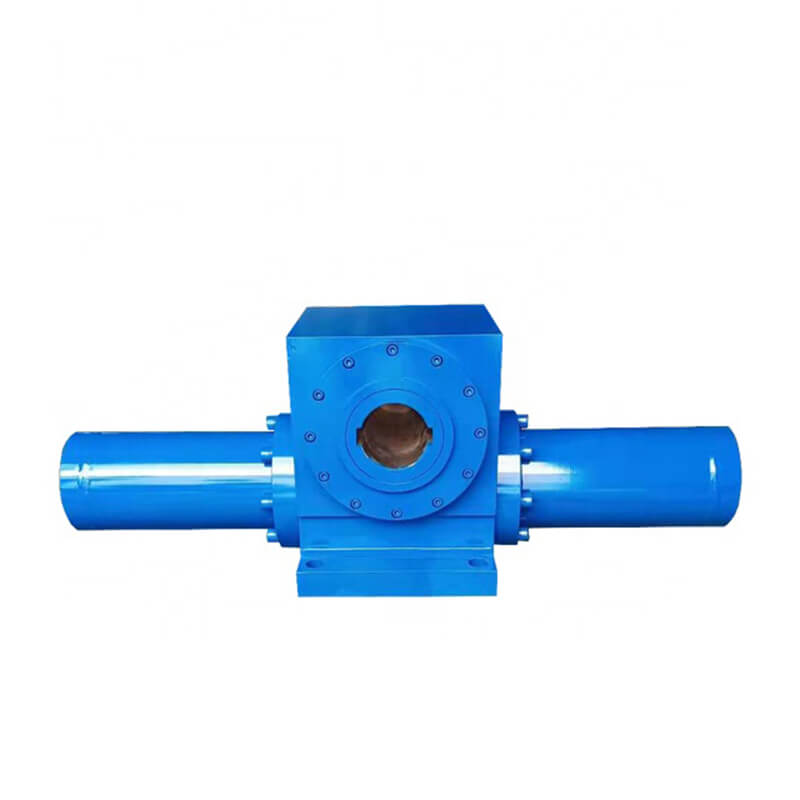

Tongte Brand rack and pinion swing Rotary actuator is the actuator that converts reciprocating linear motion into rotary motion in a hydraulic system, which is suitable for metallurgy, mining, and other industries
Availability:
Quantity:
Inquire Add to Basket

  • rotary hydraulic cylinder

  • Tongte Technology

图１

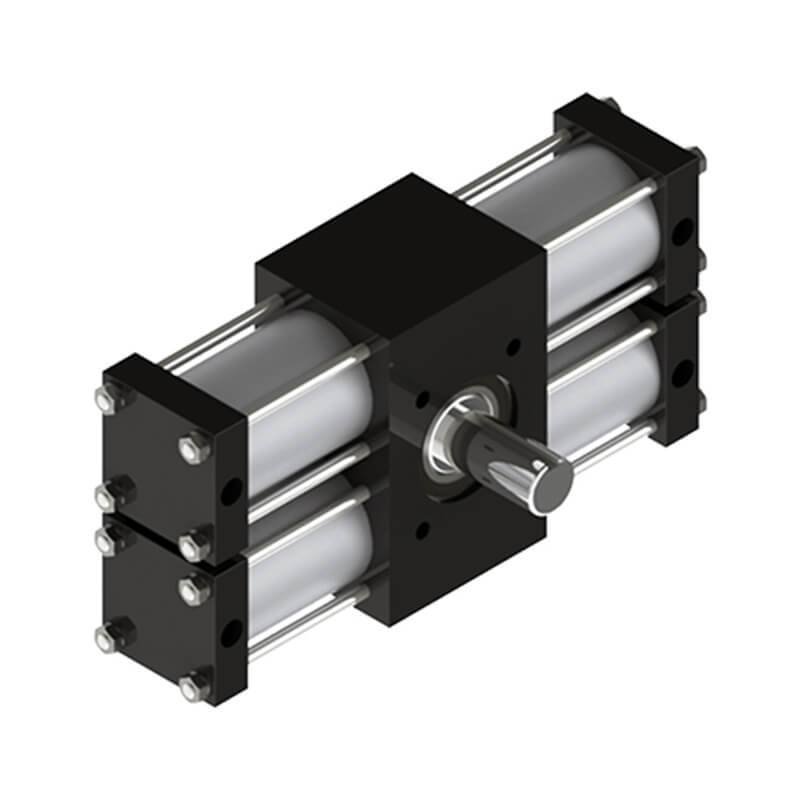

Rotating Hydraulic Actuator

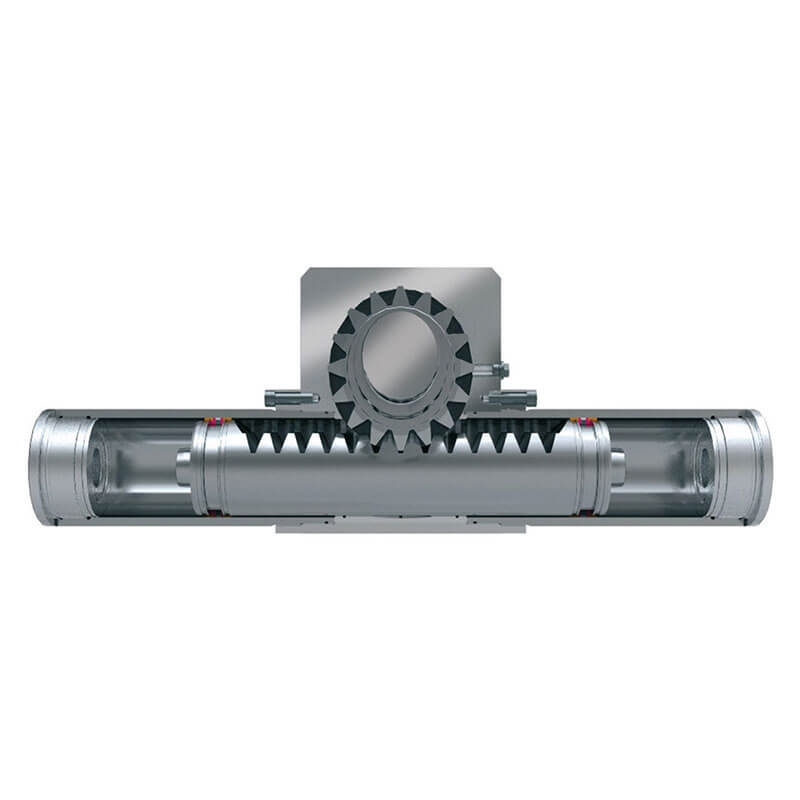

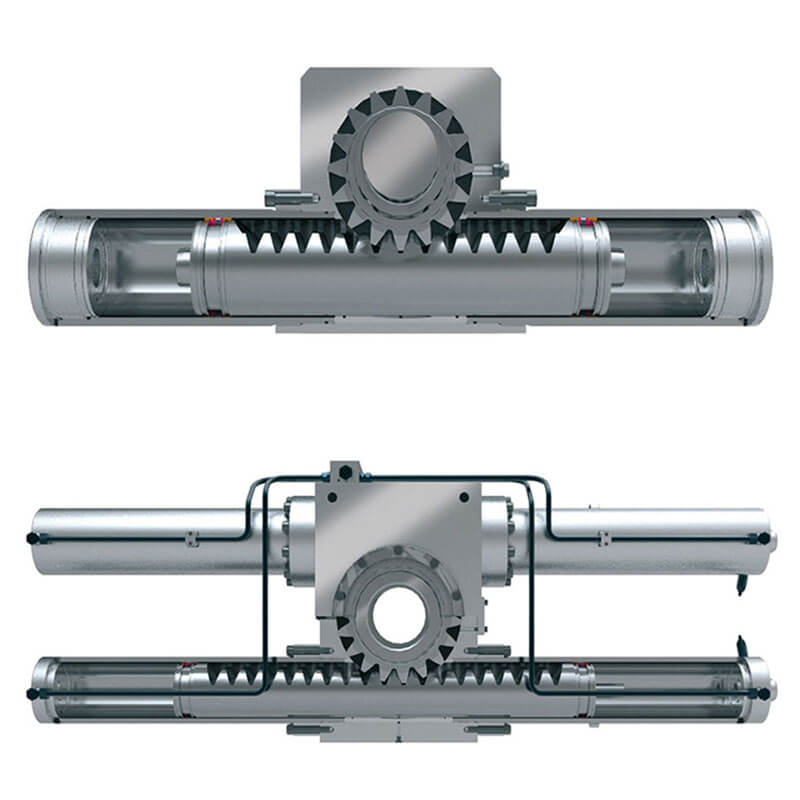

Tongte Brand rack and pinion swing Rotary actuator is the actuator that converts reciprocating linear motion into rotary motion in a hydraulic system, which is suitable for metallurgy, mining, and other industries.

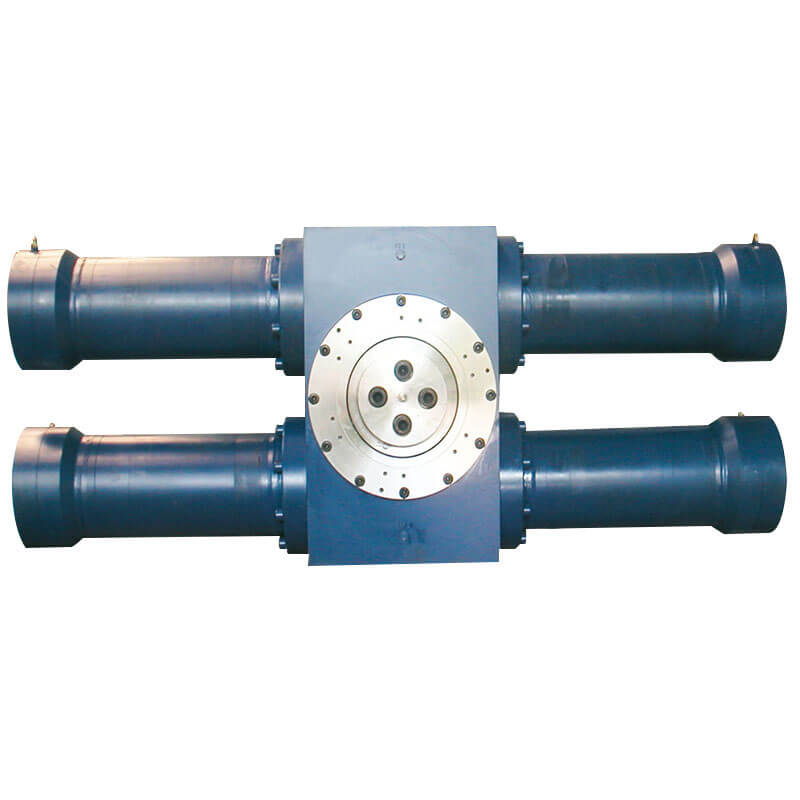

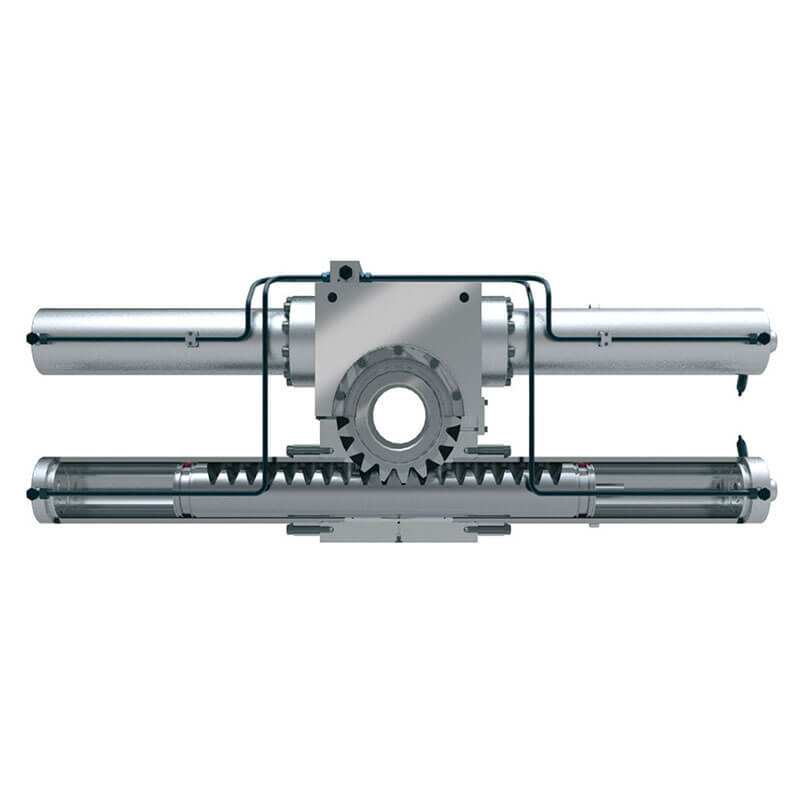

  • High torques up to 50,000 Nm(Double piston version up to 200,000Nm)

  • Swivel angle up to 720° with adjustable swivel angle limit and final position damping

  • Primary shaft one- or both-sided with feather keys, spline gearing, or EV-gearing (DIN 5480)

  • Flange or foot fixture

  • Special slideway lining for maintenance-free operation

  • Precise level control is guaranteed through leakage-free support in every position

  • Device for distance or angle measuring


图４ (1)
